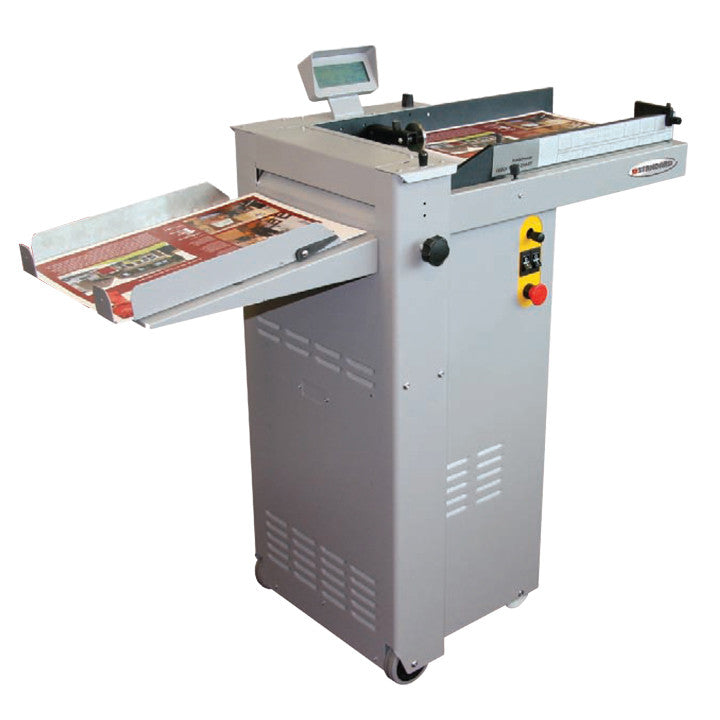

AutoCreaser 33 Standard Morgana Scoring Machine
-
Local pickup in Florida and Toronto
Collect your order from our DeBary, FL or Toronto, ON warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Description
AutoCreaser 33 Standard Morgana features
- Fully automatic
- Simple programming
- Accurate registration
- Up to 16 scores per sheet
Specifications
|
Feeding system |
Bottom suction feed |
|
Maximum sheet size |
12.9″W x 28.8″L (39″L in manual feed mode) |
|
Minimum sheet size Maximum paper weight |
5.5″W x 6.3″L12 point cover (130 lb. bond/400gsm) |
|
Minimum paper weight |
20 lb. bond/70gsm |
|
Maximum no. of scores per sheet |
16 |
|
Maximum no. of programmed applications |
9 |
|
Minimum repeat score distance: |
0.15″ (4mm – depending on paper weight) |
|
Minimum score distance:From lead edgeFrom tail edge |
1″0.78″ |
|
Speed per hour:(8.5″ x 11″ sheet size) |
Up to 5,000 single scoresUp to 3,360 double scores |
|
Speed per hour:(11″ x 17″ sheet size) |
Up to 4,320 single scoresUp to 2,880 double scores |
|
Dimensions |
46″L x 18″W x 39″H |
|
Weight / Shipping weight |
240 lbs /280 lbs |
|
Power |
230V, 60Hz, single phase, 15A |
Model: AUTOCREASER33
