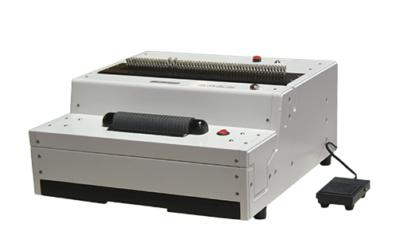

BOWAY ELECTRICAL COIL PUNCH MACHINE WITH INSERTER 4:1 MODEL DS600A
-
Local pickup in Florida and Toronto
Collect your order from our DeBary, FL or Toronto, ON warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Description
Boway Coil(Spiral) Binding Machine Electrical
4:1 MODEL DS600A
Model: BOW030DS600A
SPECIFICATIONS
Max Punching Capacity (Sheets): 25
Max Binding Width (mm): Below 330 (F4)
Punching Speed: 1.5sec/time
Holes pitch (Die Model): No. 5 (40 Pin), No. 6 (54 Pin), No. 7 (54 Pin), & No. 8 (56 Pin)
Power Supply: 240V / 110V, 50/60 Hz
Adjustable Margin (mm): 2.5, 4.5, 6.5
Quantity of Movable Cutter: Disengagement
Size of Machine (in): 18x17x8
Net weight (lbs): 63
Package (pcs/ctn): 1
G.W. of Carton (lb): 75
N.W. of Carton (lb): 71
Outer Carton size (in): 24x23x13
