Description

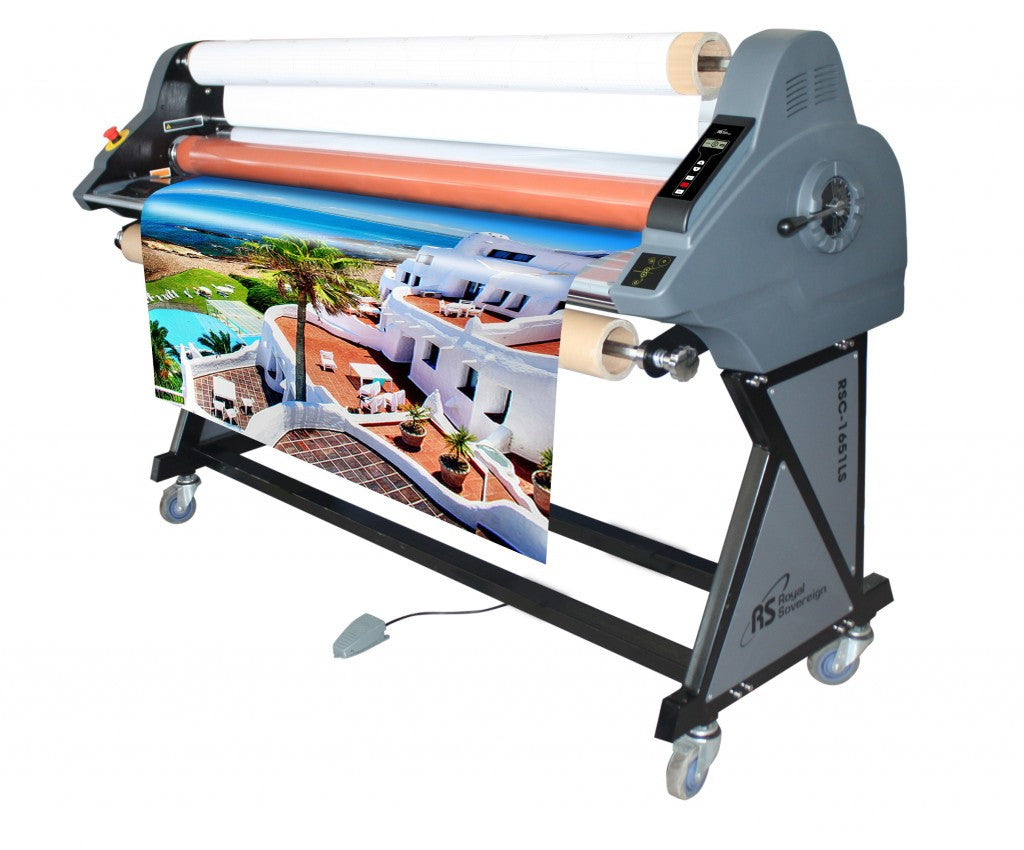

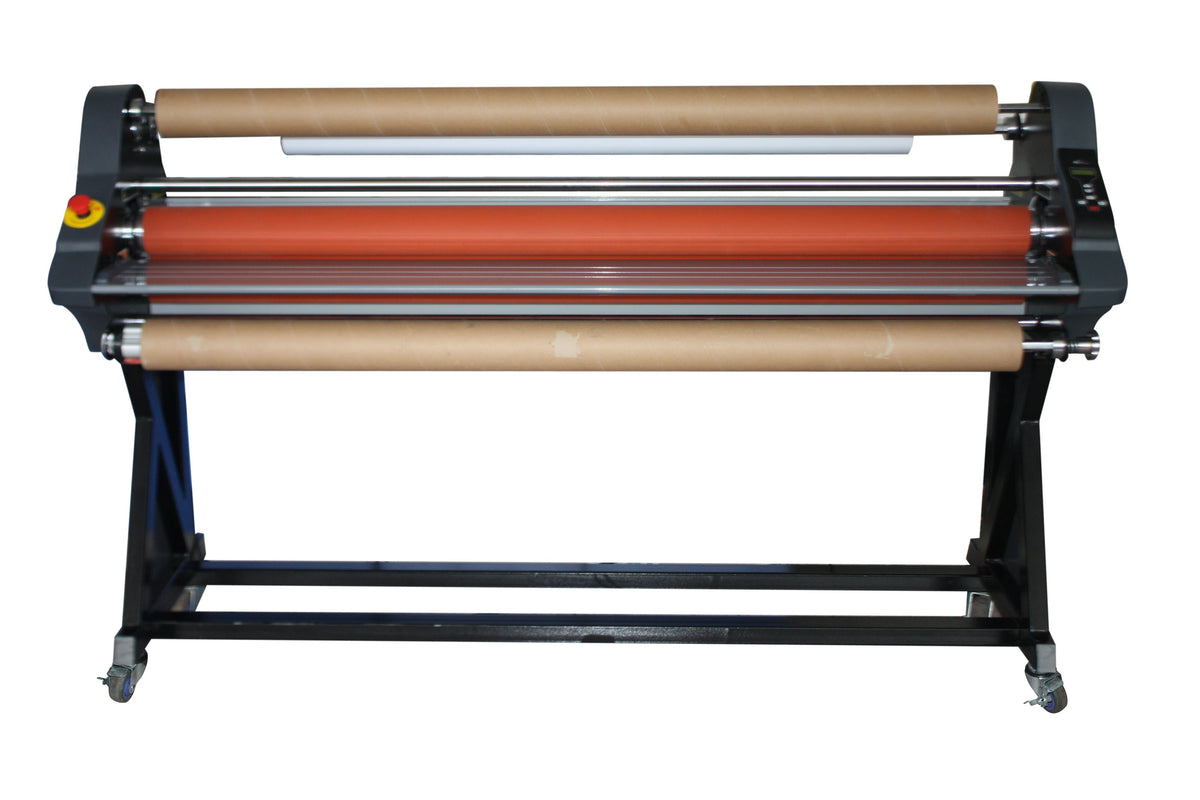

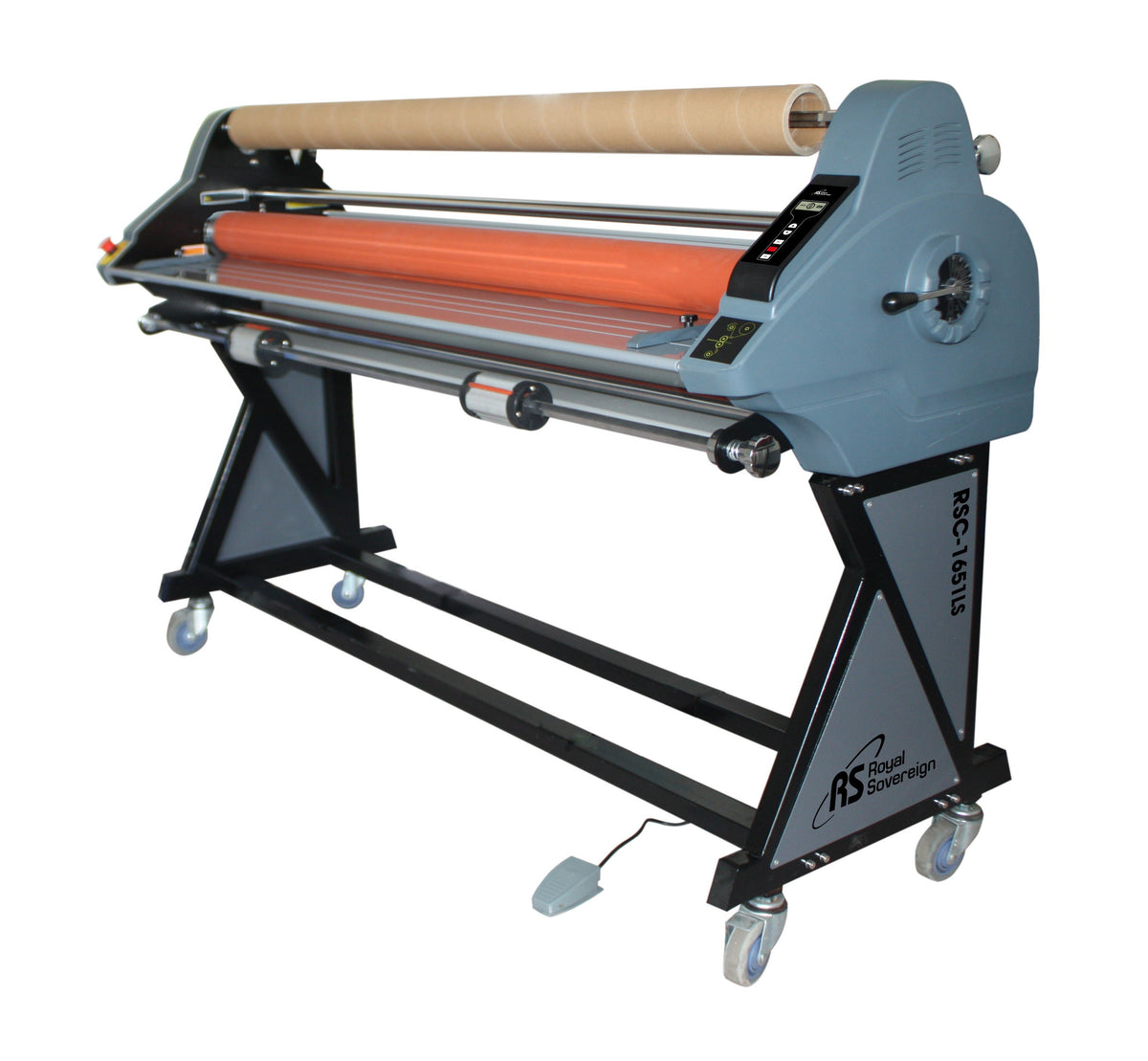

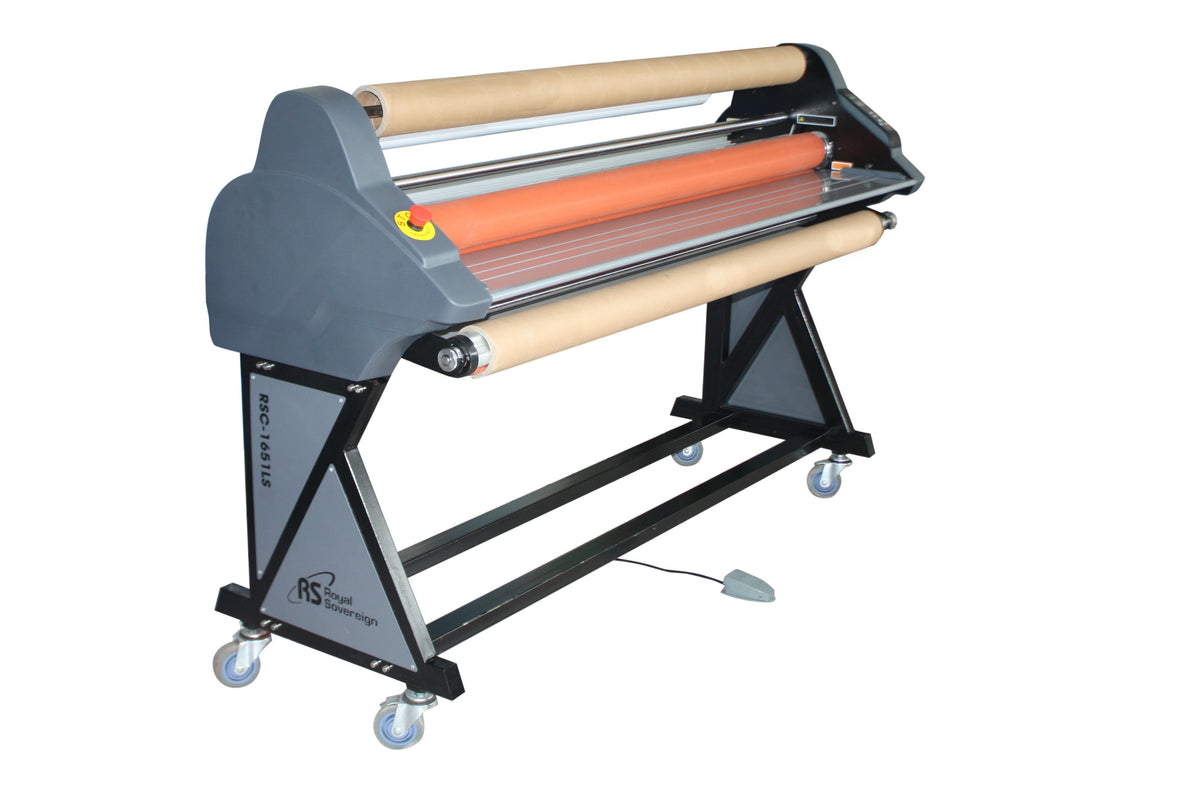

RSC-1651LSH Heat Assist 65" Cold Roll Laminating Machine
Wide format cold laminating (65″ wide)
Added feature of heat assist top laminator roller, helps activate the adhesive of pressure sensitive laminates for a smooth clear finish
Easy to use digital controls
Built for safety and ease of use
Requires little assembly and minimal maintenance
| Max. Laminating Width | 65 inch |
|---|---|
| Film Core Size | Auto Grip 3”, (2.25” optional) |
| Film Thickness | 1-10 mil |
| Drive Motor | DC geared |
| Warm-Up Time (min.) | 10 |
| Laminating Speed ft/min | 16.4 |
| Adjustable Temperature | Digital up to 122 F |
| Mounting | Up to 1″ |
| Take-Up System | Chain link to main motor |
| Transport Type | 2 roller |
| Speed Control | Digital (9 settings) |
| Reverse | Yes |
| Cold Lamination | Yes |
| Cross Cutter | Yes |
| Remote Control | Yes |
| Foot Pedal | Yes |
| Side Slitters | No |
| Document Guides | Yes |
| Encapsulation | Yes |
| Rear Wind-Up Assembly | Optional |
| Front Feeder Assembly | Optional |
| Liner Take Up | Yes |
| Unit Depth (in.) | 30 |
| Unit Width (in.) | 78 |
| Unit Height (in.) | 49 |
| Unit Weight (lbs.) | 432 |
| Crate Length (in.) | 38 |
| Crate Width (in.) | 86 |
| Crate Height (in.) | 49 |
| Crate Weight (lbs.) | 712 |
| Voltage | AC 120V / 60Hz |
| Consumption (Watts) | 1200 W |
